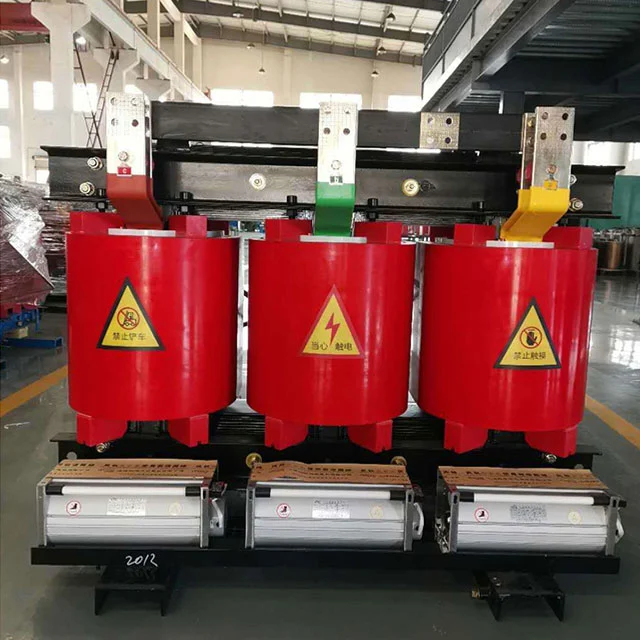

SGOB est a ducit Sinis 2000kva arida Transformer, elit et exporter. Et SGOB 2000kva arida transformator est robust electrica fabrica disposito in occursum summus potentia postulat of modern industriae et commercial occasus. Cum autem potentia rating of MM kilovolt, amperes (KVA), hoc transferentem inuidiis perficientur et reliability.
Et SGOB 2000kva arida transformator est robust electrica fabrica disposito in occursum summus potentia postulat of modern industriae et commercial occasus. Cum autem potentia rating of MM kilovolt, amperes (KVA), hoc transferentem inuidiis perficientur et reliability.
Eius arida-type consilium excludit periculum olei oleum et environmental contaminationem, faciens illud Eco-amica et sustineri arbitrium. Transformer scriptor pacto vestigia et fortis aedificare ut possit esse facile installed et operated in variis ambitus, comprehendo his cum spatio coactus.
Et SGOB 2000kva arida Transformer Features Advanced Refrigerant Systems ut Efficiens et quietam operationem. Hoc minimizes sonitus pollutio et calorem generatio, extendens transformer scriptor lifespan et enhancing altiore perficientur. Eius industria-agentibus consilio minimizes potentia damna et maximizes potentia traditio ad onus, reducing industria laoreet et ipsum vestigia.
Verto est customizable in occursum specifica mos requisita, offering a range of options ad sectam variis applications. Modularis consilio permittit facile obvius et sustentationem, reducendo downtime et operational costs. Et SGOB 2000kva arida transformator est cum industria signa et ordinationes, cursus salus et reliability in omnes applications.
Product Features
Epoxy resinae cast 2000kva arida transformer produci per Shanghai Industrial Transformer Co., Ltd. est developed et disposito in cooperante in Shenyang Verto Research Introducendis in externis technology. Product reliability Index pervenit ad internationalis provectus campester.
Sgob 2000kva arida transformator est tutum, flamma, retardant et ignis-probationem, pollutio, liberum, et potest directe installed in onus centro. Est sustentacionem, liberum, facile ut install, habet humilis comprehensive operating sumptus, humilis damnum, bonum humorem-probationem perficientur, potest operandi Northmanni ad C% humiditas, et non potest in operationem sine pre-siccatio post shutdown. Habet humilis partiales missionem, low strepitu, fortis æstus dissipatio munus, et potest operari ad CL% rated onus coactus aer refrigerationem conditionibus.
SGOB 2000kva arida Verto nunc late in altum ortum aedificia, commercial centers, airports, statio, docds, subways, officinas, subterraneis et usum conditionibus et aliis locis.
Main materiae et features
In caelo utitur f-genus insulated aeris filum ut conductor et speculum fibra et epoxy resinae compositum materia sicut velit. Eius expansion coefficiente est prope est aeris conductor et habet bonum impulsum resistentia, temperatus mutatio resistentia et crack resistentia. Omnes components speculum fibra et epoxy resinae sunt auto-exstinguunt et non permanere uri. Simul altus intentione coil mittitur epoxy resinae sub 1Mbar vacuo statu et non sunt bullae intus intus intus in parva consequat partialem. Simul damnum transfigatur transfigatur.
Ferrum Core de transformer est de 30eh1220 series summus permeability frigus, advolvit Silicon ferro laminas cum ordine grano propensionem importari a Nippon artus, Iaponia, cum XLV-GRADATUS ACACKING. Superficies ferrum core signatum cum insulating resinae pingere ne humorem et rubigo, et duo fibula et fastenes habere anti-corrosio tutela layers. Tota ferrum core adoptat non-reclinant ferrum ferro et ferro viverra laminam structuram, quae efficaciter reducit non-onus damnum, non-onus current et ferrum core sonitus.
Nam humilis intentione et excelsum current lites brevi circuitu accentus magna cum brevi circuitu occurrit et numerus humilis voltage vices parva. Et maior est humilis intentione vena est, magis prominentibus quaestio de instabiles ampere-vices erit cum filum curva genus adhibetur. Quod calor dissipatio quaestio etiam indiget considerari. In hoc tempore usus ffoyle curvis humilis voltage potest melius solvere supra problems. Primum omnium, ffoyle products non axialiter vertit et axiali correptos spiras angulos. Ampere-vertit altus et humilis intentione et in libratum et axial accentus transformator est parva cum brevi circuitu occurs. Secundo, debitum ad tenues velit, multi-iacuit aerem ducts potest poni ad voluntatem in processus, et calor dissipationem problema est etiam magis solvitur. Internum Welding de coil adoptat Xenon Donec Welding in plene automatic ffoyle curvis apparatus, quod est princeps praecisione, humilis welding resistentia, et non externum Welding processus. DMD velut usus inter flos stratis et fines signati et curavit cum resina post curavit.
Crucis-fluxus summo-flante refrigerationem fan est adoptatur, quae habet de low strepitu, princeps ventus pressura, pulchra specie, etc., et auget super cultum capacitatem. Et temperatus potestate adoptat intelligentes temperatus moderatoris ad amplio salus et reliability de transformator operatio.
Product Description
Epoxy resinae insulatas arida genus transformer valde tutum productum. Potest esse recta installed in onus centro. Hoc operatur bene in C% humiditas environment sine pre-siccatio. Hoc est late in constructionibus agro, commercial centrum, aeroportus, statione, portum, subway, fabricae, sub virtute distribution statione, offshore oleum EXERCITATIO Platform Platfer,
Product Features
● ignis repugnans
● humorem resistentia
● Securus Sustentacionem et Installation
● currit bene durante aspera environment conditionibus
● non-polluting uber
● humilis damnum in comprehensive operatio
Parametri
| Exemplar | Non onus damnum (W) |
Onus damnum (CXX%) |
Impendentia (%) |
Noload current (%) |
Sonitus campester (LPA) db |
Pondus (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC (B) 10-50 / X | 285 | 1060 | 2.2 | 57 | 360 | |
| SC (B) 10-80 / X | 380 | 1460 | 1.7 | 59 | 590 | |
| SC (B) 10-100 / X | 410 | 1670 | 1.7 | 59 | 640 | |
| SC (B) 10-125 / X | 470 | 1960 | 1.5 | 60 | 670 | |
| SC (B) 10-160 / X | 550 | 2250 | 1.5 | 60 | 870 | |
| SC (B) 10-200 / X | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC (B) 10-250 / X | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC (B) 10-315 / X | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC (B) 10-400 / X | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC (B) 10-500 / X | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC (B) 10-630 / X | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC (B) 10-800 / X | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC (B) 10-1000 / X | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC (B) 10-1250 / X | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC (B) 10-1600 / X | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC (B) 10-2000 / X | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC (B) 10-2500 / X | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC (B) 10-3150 / X | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC (B) 10-4000 / X | 4700 | 22000 | 0.5 | 76 | 10000 |
| Exemplar | Dimensionem (mm) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC (Z) (b) 10-30 / X | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC (Z) (b) 10-50 / X | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC (Z) (B) 10-80 / X | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC (Z) (B) 10-100 / X | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC (Z) (b) 10-125 / X | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC (Z) (b) 10-160 / X | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC (Z) (b) 10-200 / X | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC (Z) (B) 10-250 / X | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC (Z) (B) 10-315 / X | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC (Z) (B) 10-400 / X | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC (Z) (b) 10-500 / X | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC (Z) (B) 10-630 / X | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC (Z) (B) 10-800 / X | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC (Z) (b) 10-1000 / X | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC (Z) (b) 10-1250 / X | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC (Z) (B) 10-1600 / X | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC (Z) (b) 10-2000 / X | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC (Z) (B) 10-2500 / X | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC (Z) (b) 10-3150 / X | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC (Z) (B) 10-4000 / X | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| Exemplar | Capacity (KVA) | Longitudo (M) |
Width (mm) | Altitudo (M) |
Longitudinalis (mm) | Horizontalis (mm) | Pondus (kg) |
| SC (Z) (b) 10-30 / X | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC (Z) (b) 10-50 / X | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC (Z) (B) 10-80 / X | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC (Z) (B) 10-100 / X | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC (Z) (b) 10-125 / X | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC (Z) (b) 10-160 / X | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC (Z) (b) 10-200 / X | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC (Z) (B) 10-250 / X | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC (Z) (B) 10-315 / X | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC (Z) (B) 10-400 / X | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC (Z) (b) 10-500 / X | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC (Z) (B) 10-630 / X | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC (Z) (B) 10-800 / X | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC (Z) (b) 10-1000 / X | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC (Z) (b) 10-1250 / X | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC (Z) (B) 10-1600 / X | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC (Z) (b) 10-2000 / X | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC (Z) (B) 10-2500 / X | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC (Z) (b) 10-3150 / X | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC (Z) (B) 10-4000 / X | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
Profile Company
Shanghai industria Transformers Co., Ltd (Sgob) est plenus-range elit electrica distribution apparatu. Nostrum products includit:
● oleum-immersa Transformers
● 35kv oleum, immersa transformers
● expoxy resinae perit arida-genus potentia Transformers
● Amorphous Alloy distribution Transformers
● photovoltaic Transformers
● Ventus Power Transformers
● Box-style substation Transformers
Nostrum comitatu fuit condita in MMVII et hodie habet a 40,000sqm officina et plus quam CC elit. Nostra products late in lata range of industries ut potentia generationem et distributionem, carbo productionem, metallgy, oleum et Gas, chemicals, constructione et municipiis, airports, ferriviaria et municipiis infrastructure.
Nos quoque producendum related apparatu ut electrica cabinets et inclusi, switchger boxes currently, nos expanding nostra uber linea in alias virtutem-related areas et consociata est, ad electrica Customer et partibus et consociata est in sistform nostrae Global Customer Base.
Nos confidunt in stricto qualitas imperium system eripere summa qualitas products. De CC employees, XLVI sunt engineers experientia. Nostrum qualis ratio includit industria est:
● National Transformers Quality Center Sinis
● ISO-(IX) I: MMVIII Quality Management System
● ISO, (XIV) I: MMIV environmental Management System
● Ohsms8000 salutem et salus ratio
Nostra patents:
Nostrum productio et qualis testis capabilities includit:
● automatic ffoyle
● Digital Silicone ferro Sheeting et slitting
● plene automatic vacuo siccatio clibano et varnish linea
● HAEFLY Partialis missionem Tester
● Hafly Power Analyser
● Hafly Harmonic Analyzer
Efficacium productum est superioris efficientiam, inferior potentia dissipatio et humilis sonitus maximize tua infrastructure elit.
