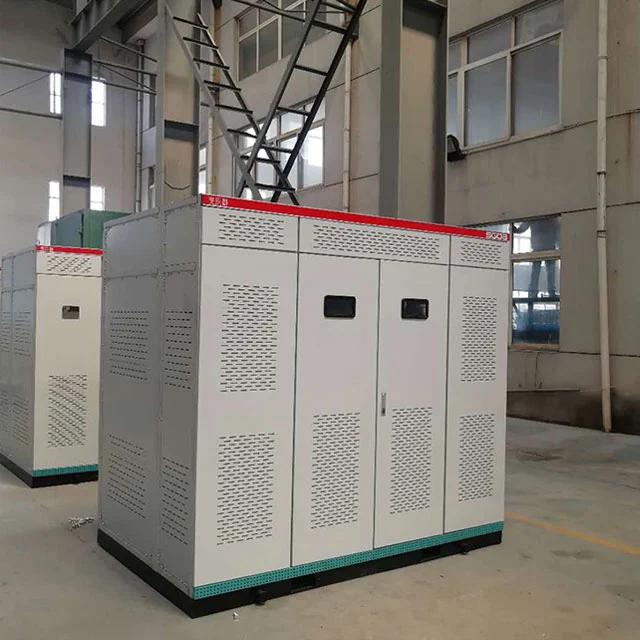

SGOB 50kva Transformer arida est status-of-artis potentiae transformationis notae ad fidem, efficientiam et versatilem in amplis applicationibus industriae, commercialis et residentialibus destinatis. Cum aestimata potentia capacitatis 50 kilovolt-amperes (kva), hic transformator machinatus est ut energiae crescentes systemata electrica modernorum postulata occurreret.
Constructio sicci-typi transformantis pluma clavis est, utens qualitatem altam, materias flammeas retardans ad nucleum et ambages encapsulandum. Hoc opus insulating oleum eliminat, transformator tutius operandi et conservandi facilior reddit. Arida consilium etiam periculum oleum minuit et ignes minuit, ut altiorem salutem et fidem augeat.
Efficacia alterius notae est transformatoris SGOB 50kva aridae. Deminutio industriae ad damna in potestate translationis ordinatur, ut operat in gradibus melioribus. Hoc confert ad compendia sumptus in electricitatis rostro ac reducit vestigium environmental-usoris finis.
Mutator in terminis compactus et nitidus est, minimum spatium occupans dum facilem translationem et institutionem expediat. Hoc facit specimen institutionum in locis coarctatis, reducendo altiore sumptuum et tempore institutionum.
SGOB 50kva Transformer arida etiam gloriatur systemata tutelae progressus provectae, inclusas supercurrentes, overvoltage, et temperaturas dispositos. Hae notae comprehensivam tutelam contra vitia et anomalias praebent, ut salutem personarum et apparatum praebeant et tempus et damnum potentiale praecludant.
Transformator fabricatur cum materiarum qualitate et subtilitate machinalis, eam faciens durabilem et firmam in gravissimis ambitibus. Constructio robusta efficit diuturnum tempus et extenuat necessitatem sustentationis et reparationum.
Ceterum Transformer SGOB 50kva arida optiones customizabiles praebet ut certae potentiae requisita et applicationes necessitates occurrant. Hoc includit varias intentiones gradus, nexus input et output, et figuras ascendentes, inconsutilem integrationem in fine utentis existentem infrastructuram electricam procurant.
Product Features
The epoxy resin cast 50kva Dry Transformer produced by Shanghai Industrial Transformer Co., Ltd. is developed and designed in cooperation with Shenyang Transformer Research Institute by introducing advanced foreign technology. The product reliability index has reached the international advanced level.
SGOB 50kva Transformator arida tuta est, retardat flammae et probatio ignis, pollutionis liberae, et in centro oneris directe institui potest. Liberum sustentationem est, facile ad institutionem, humilis sumptus operans comprehensivos, humilis detrimentum, bonum humoris probatio effectus, normaliter ad C% humiditatem operari potest, et in operatione sine pre- siccitate post shutdown collocari potest. Habet missionem partialem humilem, strepitum humilem, calorem dissipationis validum functionis, et ad 150% onus aestimatum operari potest sub condiciones refrigerationis aeris coactae.
SGOB 50kva Dry Transformer are now widely used in high-rise buildings, commercial centers, airports, stations, docks, subways, factories, underground distribution stations, offshore oil drilling platforms, power plants and other places with harsh environments and use conditions.
Pelagus materiae et features
Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.
nucleus ferreus transformatoris factus est ex 30EH120 seriei summae permeabilitatis frigoris pii schedae ferreae revolutae cum ordinatione frumenti ordinate ab Nippon Ferro, Iaponia, 45° articulis plenis coneris et quattuor gradus gradatim positis. Superficies nuclei ferrei signatus cum resina insulating pingit, ne humorem et aeruginem intercludat, et duae fibulae et fasteners anti-corrosionem stratis tutelae habent. Totus nucleus ferrei iugum ferreum non acervum et ferreum trahere structuram bracteae, quae nullum onus detrimentum efficaciter minuit, nullo onere currenti et nucleo ferreo sonum facit.
Pro humili intentione et gyro venae altitudinis, brevis circuitus vis magna est cum brevis occursus occursus, et numerus humilium intentionum se convertens parvus est. Quo maior humilitas voltage vena est, eo magis problema ampere-vicum instabilis eminentior erit cum genus flexae filum adhibitum est. Calor dissipationis quaestio etiam consideranda est. Hoc tempore, usus claua curvi pro humili intentione melius praedictas difficultates solvere potest. Imprimis, ffoyle producta non habent vices axiales et angulos flexos axiales spirales. Ampere vices altae et infimae intentionis ambages librantur, et axialis transformantis accentus parvus est quando brevis occursus occursus est. Secundo, propter tenues velit, multi-circulum aeris ductus libuerit in processu constitui, et calor dissipationis problema melius solvitur. Conglutinatio interna gyri xenon tutelam applicans in machinam globorum plene automaticam fovet, quae altam praecisionem, humili glutino resistentiam habet, nec processus glutino externo. Nulla insula DMD adhibetur inter strata curvis, extremaque signata resina curvis curata.
Crux-fluxus summo-flante refrigerationem ventilabrum adoptat, quae proprietates habet strepitus humilis, pressus ventorum altus, species pulchra, etc., et auget facultatem transformantis cultro. Temperatus imperium prudentem temperatum moderatorem adhibet ad meliorem salutem ac fidem transformantis operationis.
PRODUCT DESCRIPTION
Epoxy resinae insulatae genus siccum transformator valde tutus est. Protinus in centrum oneris collocari potest. Bene operatur in ambitu humiditatis 100% sine praesiccatione. Vulgo usus est in constructionibus campi, centrum mercatorum, aeriportuum, stationis, portus, subway, officinas, distributio stationis sub terra, oleum suboles diam diam, potentia planta etc.
Product Features
ignis repugnans
resistentia umor
Securus sustentationem et institutionem
Cursor bene in aspera environment conditionibus
Non polluere productum
Minimum damnum in comprehensive operandi
PARAMETERS
| EXEMPLUM |
NO LOAD LOSS (W) |
PONDUS PRAEIUDICATUM (120%) |
IMPENDENCE (%) |
NOLOAD current (%) |
SONITUS LIBELLA (Lpa) dB* |
PONDUS (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-250/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| EXEMPLUM | DIMENSIONE(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-250/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| EXEMPLUM | CAPACITAS (KVA) | TANDEM (MM) |
LATITUDO (MM) | ALTITUDO (MM) |
LONGITUDINALIS (MM) | HORIZONTAL (MM) | PONDUS (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-250/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
SODALICIUM PROFILE
Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:
Oleum transformers immersum
● 35KV transformers oleum immersum
● Expoxy resin insulation dry-type power transformers
Amorphoum mixturae distributionis transformers
Photovoltaic transformers
Ventus potentia transformers
Box-style substation transformers
Societas nostra anno 2007 condita est et hodie 40,000sqm officinam habet et plus quam 200 conductos operarios. Producti nostri late utuntur in amplis industriarum generibus ut potentia generativa et distributio, productio carbonis, metallurgia, oleum et gas, chemicals, constructiones, portus, nisl, ferriviaria et infrastructura municipalis.
Etiam instrumenta cognata sicut scrinia electrica et clausuras, pixides switchgear in statu nostro producto in alias regiones potestates relatas expandimus sicut connexiones aestus abhorrentes, retinacula electrica et adiunctis instrumentis mechanicis etc. Propositum est aedificare unum stop. electrica apparatu et partium suggestum supplent pro fundamento nostro globali emptoris.
Qualitatem nostram strictam ratiocinari confidimus ut summa productorum qualitas tradat. Nostri 200 operarii, 46 fabrum experientia sunt. Nostra ratio qualitatis includit industriam:
National Transformers Quality CURATIO Centrum Sinarum
ISO-9001:2008 Quality Management System
ISO-14001:2004 Environmental Management System
● OHSMS18000 Salutis et Salutis Ratio
Patentes nostri:
Nostra productio et qualitas experiendi facultates includunt:
Automatic ffoyle sinuosa
Digital silicone ferro fusa et slitting
Plene vacuum clibano exsiccato et illitus linea
HAEFLY probatorem partialem missionem
potentia analyser HAEFLY
HAEFLY analyser harmonicus
Effectus est effectus superior efficientiae altae, inferior dissipatio potentiae et strepitus humilis ad augendum collocationem tuam infrastructuram.
