In SGOB 200kva Transformator arida industria distributio continue evolvitur, agitatur progressionibus technologicis et inceptis sustinendis. Artifices collocant in investigationibus et progressu ad augendam transformantium efficientiam, firmitatem et notas salutis. Hoc includit usum materiae provectae, ut nucleos metallicos amorphos et systemata eco-amica insulationis, ad emendandas res scelerisque et electricas.
SGOB 200kva Transformer arida stat ut testamentum evolutionis et ruditatis instrumentorum electricae intra potestatem industriae distributionis. Cum negotia et instituta magis magisque quaerunt solutiones certas, efficientes, et environmentally amica potentiae solutiones, SGOB 200kva Transformer arida emersit ut praelata electio pro amplis applicationibus.
Distributio industriae potestatem patitur mutationem significans, incrementis technologicis, sustineri inceptis et evolutionibus evolutionis exigentibus. Transformatores, tamquam cruciatus partium egetis electricae, munere funguntur in convertendo et distribuendo potentiae efficienter. Arida-typus transformatores nominatim eminentiam consecuti sunt propter auctam salutem, necessariam sustentationem redactam, et utilitates environmentales ad transformatores olei refertos comparati.
SGOB 200kva arida Transformer: Key Industry Conlationes:
Effectus et Reliability:
With a rated power capacity of 200 kilovolt-amperes (kva), the SGOB 200kva Dry Transformer offers exceptional efficiency, minimizing energy losses and reducing operational costs. Its robust construction ensures long-term reliability, enabling businesses to maintain consistent power supplies and avoid costly disruptions.
Sustentabilitas:
Sicca ratio designationis usum materiae ancipitiae excludit, ut oleum transformatorem, vestigium environmental reducens et normas magis magisque restrictas in ancipitia vasti dispositionis obtemperet. Hoc confert ad altiore sustentabilitate nisus et adsimilat cum increbrescente inclinatione adoptandi technologias virides.
Versatility and customization:
SGOB 200kva Transformator siccus versatilis est satis ad varias necessitates industriales, commerciales, et institutionales ministrare. Manufacturers optiones customizationes praebent, inclusas varias intentiones gradus, inputationes et configurationes output, et ordinationes ascendentes, ut finem utentes ad sartorem transformatorem ad propria requisita sua praebeant.
Compliance and Safety:
Transfigurator signis et ordinationibus internationalibus obtemperat, eius salutem ac fidem praestans. Rigorous probatio et certificationis processus verificatur obsequium cum signis industriae, in iis quae ad compatibilitatem electromagneticam (EMC), breve spatium facultatem sustinent, et effectus scelerisque.
Applications Per Industria:
Industriae: In plantis, fodiendis operationibus fabricandis, aliisque ambitibus gravis officiorum, SGOB 200kva Transformer arida sustinet machinam, apparatum, systemata temperantem, efficientiam et efficientiam operativam procurans.
Commercial: Suitable for office buildings, retail stores, healthcare facilities, and other commercial establishments, the transformer provides a stable power supply for appliances, lighting, HVAC systems, and other critical infrastructure.
Institutionum: Perfecta ad institutiones institutiones, regimen aedificia, aliaque facultates publicas, commutator certam potestatem efficit ad officia essentialia, ad salutem augendam et ad efficientiam perficiendam.
Industria trends and Innovations:
Distributio industriae potestas continenter evolvitur, agitatur progressionibus technologicis et inceptis sustinendis. Artifices collocant in investigationibus et progressu ad augendam transformantium efficientiam, firmitatem et notas salutis. Hoc includit usum materiae provectae, ut nucleos metallicos amorphos et systemata eco-amica insulationis, ad emendandas res scelerisque et electricas.
Praeterea, integratio eget technologiae captiosus et Internet rerum (IoT) industriam transformat. Remota vigilantia, diagnostica, et facultates predictive conservationis efficiunt artifices et finem utentes ad optimize transformator effectus, down tempus minuere, et vitae spatium extendere.
Product Features

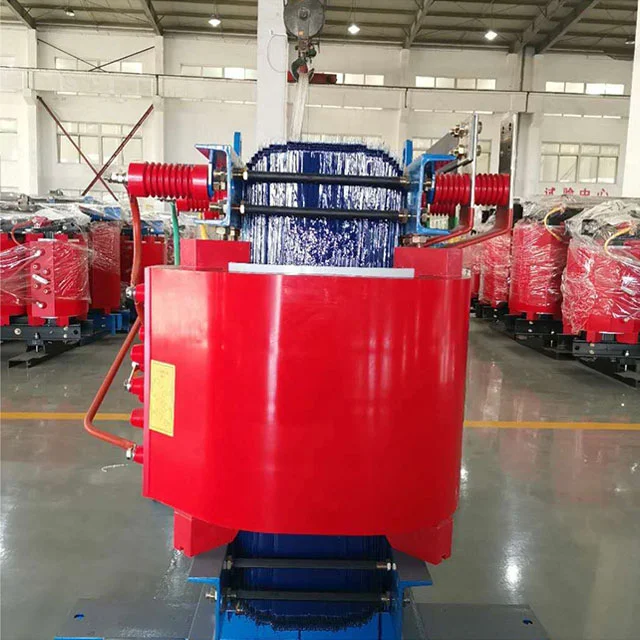

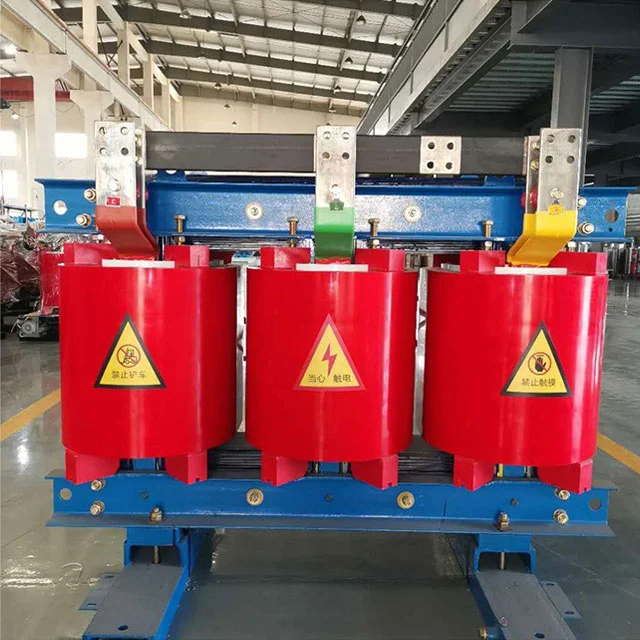

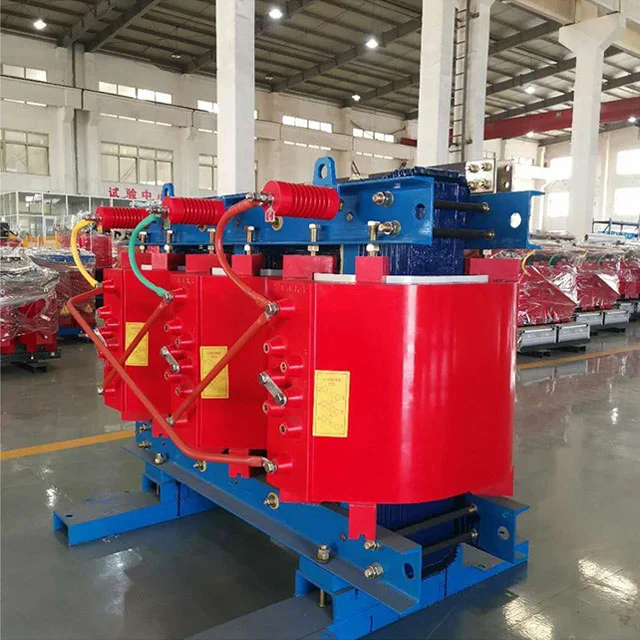

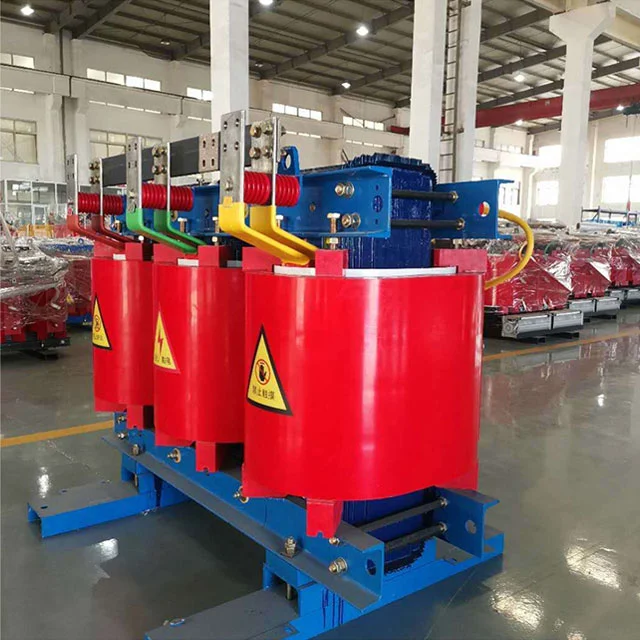

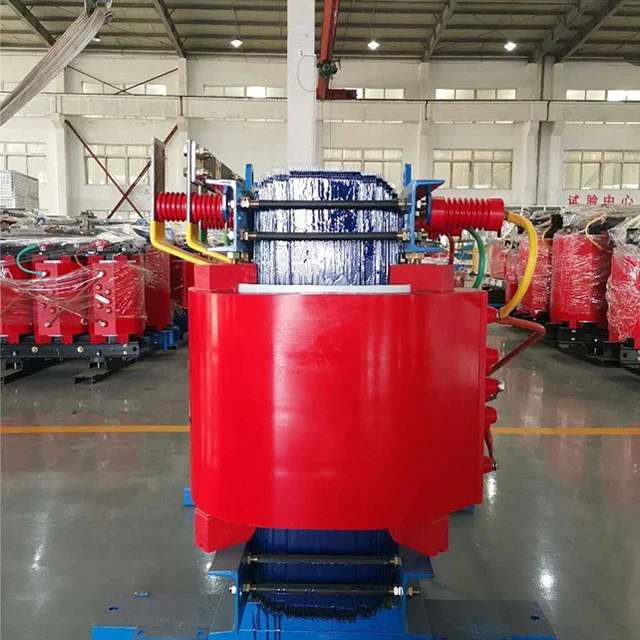

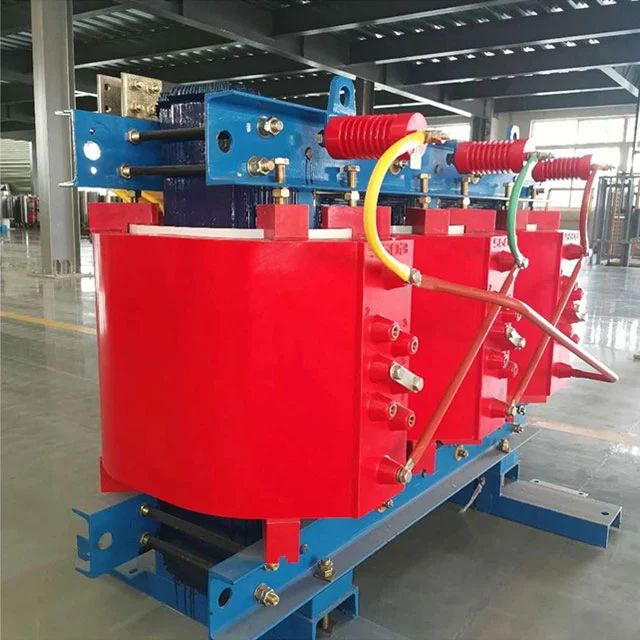

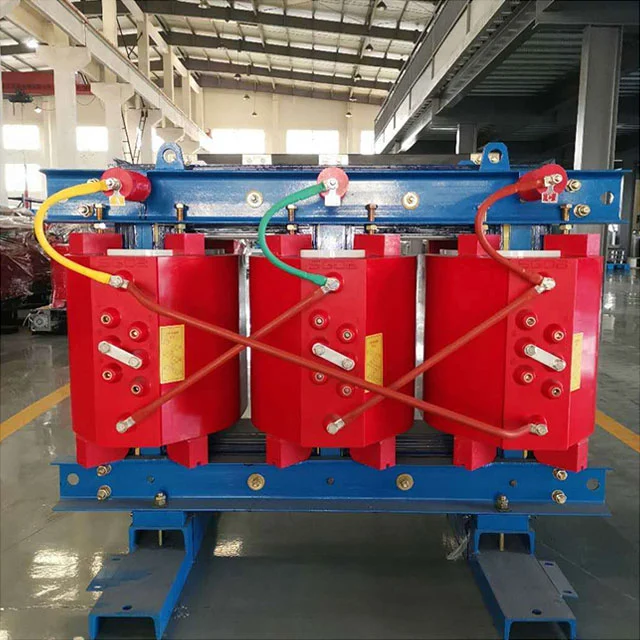

Resina epoxy dejecta 200kva arida Transformer producta a Shanghai Transformer Industrial Co, Ltd evolvitur et designatur in cooperatione cum Instituto Research Shenyang Transformer, inducendo technologias externas. Fiducia producti index in gradum internationalem pervenit.
SGOB 200kva Transformator arida tuta est, retardat flammae et probatio ignis, pollutionis liberae, et in centro oneris directe institui potest. Liberum sustentationem est, facile ad institutionem, humilis sumptus operans comprehensivos, humilis detrimentum, bonum humoris probatio effectus, normaliter ad C% humiditatem operari potest, et in operatione sine pre- siccitate post shutdown collocari potest. Habet missionem partialem humilem, strepitum humilem, calorem dissipationis validum functionis, et ad 150% onus aestimatum operari potest sub condiciones refrigerationis aeris coactae.
SGOB 200kva Transformator arida nunc late in aedificiis altis ortus, centris mercatorum, aliquet nisl, stationibus, navalibus, subviis, officinarum, stationum subterraneis distributio, oleum littoris exercendorum suggestorum, herbarum potentiarum et aliorum locorum asperis ambitibus et conditionibus utentibus.
Pelagus materiae et features
Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.
nucleus ferreus transformatoris factus est ex 30EH120 seriei summae permeabilitatis frigoris pii schedae ferreae revolutae cum ordinatione frumenti ordinate ab Nippon Ferro, Iaponia, 45° articulis plenis coneris et quattuor gradus gradatim positis. Superficies nuclei ferrei signatus cum resina insulating pingit, ne humorem et aeruginem intercludat, et duae fibulae et fasteners anti-corrosionem stratis tutelae habent. Totus nucleus ferrei iugum ferreum non acervum et ferreum trahere structuram bracteae, quae nullum onus detrimentum efficaciter minuit, nullo onere currenti et nucleo ferreo sonum facit.
For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.
The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure, beautiful appearance, etc., and enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.
Product Description
Epoxy resinae insulatae genus siccum transformator valde tutus est. Protinus in centrum oneris collocari potest. Bene operatur in ambitu humiditatis 100% sine praesiccatione. Vulgo usus est in constructionibus campi, centrum mercatorum, aeriportuum, stationis, portus, subway, officinas, distributio stationis sub terra, oleum suboles diam diam, potentia planta etc.
Product Features
ignis repugnans
● Moisture resistance
Securus sustentationem et institutionem
Cursor bene in aspera environment conditionibus
Non polluere productum
Minimum damnum in comprehensive operandi
PARAMETERS
| EXEMPLUM | NO PONDUS PRAEIUDICATUM (W) |
PONDUS PRAEIUDICATUM (120%) |
IMPENDENCE (%) |
NOLOAD current (%) |
SONITUS LIBELLA (Lpa) dB* |
PONDUS (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-250/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| EXEMPLUM | DIMENSIONE(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-2500/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| EXEMPLUM | CAPACITAS (KVA) | TANDEM (MM) |
LATITUDO (MM) | ALTITUDO (MM) |
LONGITUDINAL (MM) | HORIZONTAL (MM) | PONDUS (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-2500/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
SODALICIUM PROFILE
Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:
Oleum transformers immersum
● 35KV transformers oleum immersum
Expoxy resinae velit arida-genus virtutis transformers
Amorphoum mixturae distributionis transformers
Photovoltaic transformers
Ventus potentia transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
Etiam instrumenta cognata sicut scrinia electrica et clausuras, pixides switchgear in statu nostro producto in alias regiones potestates relatas expandimus sicut connexiones aestus abhorrentes, retinacula electrica et adiunctis instrumentis mechanicis etc. Propositum est aedificare unum stop. electrica apparatu et partium suggestum supplent pro fundamento nostro globali emptoris.
Qualitatem nostram strictam ratiocinari confidimus ut summa productorum qualitas tradat. Nostri 200 operarii, 46 fabrum experientia sunt. Nostra ratio qualitatis includit industriam:
● National Transformers Quality Supervision Center of China
ISO-9001:2008 Quality Management System
ISO-14001:2004 Environmental Management System
● OHSMS18000 Salutis et Salutis Ratio
Patentes nostri:
Nostra productio et qualitas experiendi facultates includunt:
Automatic ffoyle sinuosa
Digital silicone ferro fusa et slitting
● Fully automatic vacuum drying oven and varnish line
HAEFLY probatorem partialem missionem
potentia analyser HAEFLY
HAEFLY analyser harmonicus
Effectus est effectus superior efficientiae altae, inferior dissipatio potentiae et strepitus humilis ad augendum collocationem tuam infrastructuram.
