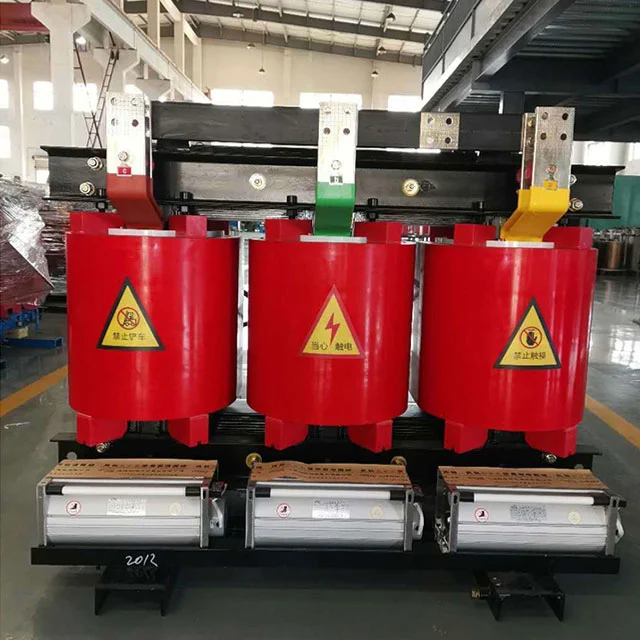

3150kva arida Transformer

SGOB 3150kva Transformer sicca est status machinae electricae arte-of-the-artis designatae ad vim strictioris industriae et mercatorum occasus postulata. Cum potentia aestimatione 3150 kilovolt-amperes (kva), hic commutator singularem observantiam, fidem et efficientiam praebet, eamque optimam electionem facit pro negotiis quae facultatem solutionis potentiae altae requirunt.

Quod consilium fictile-typus transformantis eliminat periculum olei scillam, eam facit optionis environmentally amicabilis ac sustinebilis. Hoc consilium etiam efficit ut transformator facile institui et operari possit in variis ambitibus, iis etiam angustiis spatii. Foedum vestigium et firmum fabricandi SGOB 3150kva Siccae Transformantis eam optimam electionem faciunt pro negotiis quae valida solutione spatii adhuc salutaris indigent.

TRANSFIGURATOR instructus est ad refrigerationem provectam systemata quae temperaturas operandi optimales conservant, sonum pollutionis et caloris generationis minuendo. Hoc efficit ut commutator quiete et efficaciter currat, extenuando energiam consumptionem et gratuita opera perficienda. De industria efficientis consilium SGOB 3150kva Transformer arida etiam potentia detrimenta minuit et potestatem partus oneris auget, ulteriorem minuens energiam rogationum et vestigia carbonis.

SGOB 3150kva Transformer arida est customisabilis ad usus specificas emptoris requisitis. Distinguendi optiones praebet variis applicationibus aptare, negotia permittens sartor transformator ad suas singulares necessitates. Modularis transformatoris consilium permittit facilem accessum et sustentationem, tempus minuendi et vitae transformantis ampliandi.

Product Features

Resina epoxy dejecta 3150kva arida Transformer a Shanghai Industrial Transformer Co, Ltd evolvit et ordinatur in cooperatione cum Instituto Research Shenyang Transformer, inducendo technologias externas. Fiducia producti index in gradum internationalem pervenit.

SGOB 3150kva Transformator arida tuta est, retardat flammae et probatio ignis, pollutionis liberae, et in centro oneris directe institui potest. Liberum sustentationem est, facile ad institutionem, humilis sumptus operans comprehensivos, humilis detrimentum, bonum humoris probatio effectus, normaliter ad C% humiditatem operari potest, et in operatione sine pre- siccitate post shutdown collocari potest. Habet missionem partialem humilem, strepitum humilem, calorem dissipationis validum functionis, et ad 150% onus aestimatum operari potest sub condiciones refrigerationis aeris coactae.

SGOB 3150kva Arida Transformator late nunc in aedificiis summus ortus, centris mercatorum, aliquet nisl, stationes, navalia, subvia, officinas, stationes sub terra distributio, oleum littoris exercendis suggestis, herbae potentiae et alia loca asperis ambitibus et conditionibus utuntur.

Pelagus materiae et features

Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.

nucleus ferreus transformatoris factus est ex 30EH120 seriei summae permeabilitatis frigoris pii schedae ferreae revolutae cum ordinatione frumenti ordinate ab Nippon Ferro, Iaponia, 45° articulis plenis coneris et quattuor gradus gradatim positis. Superficies nuclei ferrei signatus cum resina insulating pingit, ne humorem et aeruginem intercludat, et duae fibulae et fasteners anti-corrosionem stratis tutelae habent. Totus nucleus ferrei iugum ferreum non acervum et ferreum trahere structuram bracteae, quae nullum onus detrimentum efficaciter minuit, nullo onere currenti et nucleo ferreo sonum facit.

For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.

Crux-fluxus summo-flante refrigerationem ventilabrum adoptat, quae proprietates habet strepitus humilis, pressus ventorum altus, species pulchra, etc., et auget facultatem transformantis cultro. Temperatus imperium prudentem temperatum moderatorem adhibet ad meliorem salutem ac fidem transformantis operationis.

Product Description

Epoxy resinae insulatae genus siccum transformator valde tutus est. Protinus in centrum oneris collocari potest. Bene operatur in ambitu humiditatis 100% sine praesiccatione. Vulgo usus est in constructionibus campi, centrum mercatorum, aeriportuum, stationis, portus, subway, officinas, distributio stationis sub terra, oleum suboles diam diam, potentia planta etc.

Product Features

ignis repugnans

resistentia umor

Securus sustentationem et institutionem

● Running well during rough environment conditions

Non polluere productum

● Low loss during the comprehensive operation

PARAMETERS

COMPANY PROFILE

Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:

Oleum transformers immersum

● 35KV transformers oleum immersum

Expoxy resinae velit arida-genus virtutis transformers

Amorphoum mixturae distributionis transformers

● Photovoltaic transformers

Ventus potentia transformers

Box-style substation transformers

Societas nostra anno 2007 condita est et hodie 40,000sqm officinam habet et plus quam 200 conductos operarios. Producti nostri late utuntur in amplis industriarum generibus ut potentia generativa et distributio, productio carbonis, metallurgia, oleum et gas, chemicals, constructiones, portus, nisl, ferriviaria et infrastructura municipalis.

We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.

Qualitatem nostram strictam ratiocinari confidimus ut summa productorum qualitas tradat. Nostri 200 operarii, 46 fabrum experientia sunt. Nostra ratio qualitatis includit industriam:

National Transformers Quality CURATIO Centrum Sinarum

ISO-9001:2008 Quality Management System

ISO-14001:2004 Environmental Management System

● OHSMS18000 Salutis et Salutis Ratio

Patentes nostri:

Nostra productio et qualitas experiendi facultates includunt:

Automatic ffoyle sinuosa

Digital silicone ferro fusa et slitting

Plene vacuum clibano exsiccato et illitus linea

● HAEFLY partial discharge tester

potentia analyser HAEFLY

HAEFLY analyser harmonicus

The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
