In landscape distributionis potentiae evolutae, artifices continenter innovant ut transformatores efficiant, qui efficaciores, certiores et sustinebiles sint. SGOB 315kva Transformator arida has progressiones involvit, provectas materias et technologias levans ad meliorem effectum deducendi et ictum environmental minuendum.
Integratio eget technologiae captiosus et interreti Rerum (IOT) industriam transformat, remotam vigilantiam et praedictionem sustentationem parans. Hoc permittit finem utentes ad optimize transformator effectus, extenuant tempus, et vitae spatium extendunt, altiore efficientia perficiendi augendi.

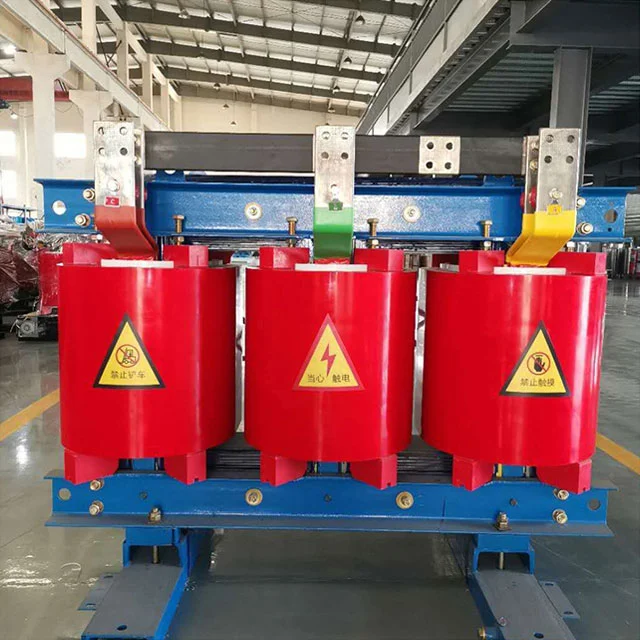

SGOB 315kva Transformer arida significat pinnam machinalis electricae, formandam ad varias necessitates sectorum industrialium, commercialium et institutionalium occurrentium. Cum valida potentia capacitatis 315 kilovolt-amperes (kva), hic commutator singularem observantiam, constantiam et efficientiam in variis applicationibus distributionis offert.
SGOB 315kva Transformer arida, a honesto fabrica et supplemento in Sinis producta, pinnam excellentiae machinalis electricae repraesentant. Hi transformatores ad amussim et extremam technologiam machinati sunt ut solutiones robustae, efficientes, et diuturnae potentiae solutiones praebeant. Ut opificem et elit in industria ducens, societas suprema signa qualitatis ditionis praestat, ut quisque Transformer SGOB 315kva aridam speciem vel exspectationem clientem internationalem superet vel excedat. Apta amplis applicationibus, hi transformatores ordinantur ad augendam fidem et efficientiam potentiae systematum globally distribuendi.
Product Features
Epoxy resina 315kva arida Transformer a Shanghai Transformatori Industrialis Co., Ltd producta, in cooperatione cum Shenyang Transformer Research Instituto evolvit et designatur, technologias externas inducendo. Fiducia producti index in gradum internationalem pervenit.
SGOB 315kva Dry Transformer is safe, flame-retardant and fire-proof, pollution-free, and can be directly installed in the load center. It is maintenance-free, easy to install, has low comprehensive operating cost, low loss, good moisture-proof performance, can operate normally at 100% humidity, and can be put into operation without pre-drying after shutdown. It has low partial discharge, low noise, strong heat dissipation function, and can operate at 150% rated load under forced air cooling conditions.
SGOB 315kva Arida Transformator late nunc in aedificiis summus ortus, centris mercatorum, aliquet nisl, stationes, navalia, subvia, officinas, stationes sub terra distributio, oleum littoris exercendis suggestis, herbae potentiae et alia loca asperis ambitibus et conditionibus utuntur.
Pelagus materiae et features
Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.
nucleus ferreus transformatoris factus est ex 30EH120 seriei summae permeabilitatis frigoris pii schedae ferreae revolutae cum ordinatione frumenti ordinate ab Nippon Ferro, Iaponia, 45° articulis plenis coneris et quattuor gradus gradatim positis. Superficies nuclei ferrei signatus cum resina insulating pingit, ne humorem et aeruginem intercludat, et duae fibulae et fasteners anti-corrosionem stratis tutelae habent. Totus nucleus ferrei iugum ferreum non acervum et ferreum trahere structuram bracteae, quae nullum onus detrimentum efficaciter minuit, nullo onere currenti et nucleo ferreo sonum facit.
Pro humili intentione et gyro venae altitudinis, brevis circuitus vis magna est cum brevis occursus occursus, et numerus humilium intentionum se convertens parvus est. Quo maior humilitas voltage vena est, eo magis problema ampere-vicum instabilis eminentior erit cum genus flexae filum adhibitum est. Calor dissipationis quaestio etiam consideranda est. Hoc tempore, usus claua curvi pro humili intentione melius praedictas difficultates solvere potest. Imprimis, ffoyle producta non habent vices axiales et angulos flexos axiales spirales. Ampere vices altae et infimae intentionis ambages librantur, et axialis transformantis accentus parvus est quando brevis occursus occursus est. Secundo, propter tenues velit, multi-circulum aeris ductus libuerit in processu constitui, et calor dissipationis problema melius solvitur. Conglutinatio interna gyri xenon tutelam applicans in machinam globorum plene automaticam fovet, quae altam praecisionem, humili glutino resistentiam habet, nec processus glutino externo. Nulla insula DMD adhibetur inter strata curvis, extremaque signata resina curvis curata.
Crux-fluxus summo-flante refrigerationem ventilabrum adoptat, quae proprietates habet strepitus humilis, pressus ventorum altus, species pulchra, etc., et auget facultatem transformantis cultro. Temperatus imperium prudentem temperatum moderatorem adhibet ad meliorem salutem ac fidem transformantis operationis.
Product Description
Epoxy resinae insulatae genus siccum transformator valde tutus est. Protinus in centrum oneris collocari potest. Bene operatur in ambitu humiditatis 100% sine praesiccatione. Vulgo usus est in constructionibus campi, centrum mercatorum, aeriportuum, stationis, portus, subway, officinas, distributio stationis sub terra, oleum suboles diam diam, potentia planta etc.
Product Features
ignis repugnans
resistentia umor
Securus sustentationem et institutionem
Cursor bene in aspera environment conditionibus
Non polluere productum
Minimum damnum in comprehensive operandi
PARAMETERS
| EXEMPLUM | NO PONDUS PRAEIUDICATUM (W) |
PONDUS PRAEIUDICATUM (120%) |
IMPENDENTIA (%) |
NOLOAD current (%) |
NOISE LEVEL (Lpa) dB* |
PONDUS (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-250/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| EXEMPLUM | DIMENSIONE(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-250/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| EXEMPLUM | CAPACITAS (KVA) | TANDEM (MM) |
LATITUDO (MM) | ALTITUDO (MM) |
LONGITUDINALIS (MM) | HORIZONTAL (MM) | PONDUS (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-250/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
SODALICIUM PROFILE
Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:
Oleum transformers immersum
● 35KV transformers oleum immersum
Expoxy resinae velit arida-genus virtutis transformers
Amorphoum mixturae distributionis transformers
Photovoltaic transformers
● Wind power transformers
Box-style substation transformers
Societas nostra anno 2007 condita est et hodie 40,000sqm officinam habet et plus quam 200 conductos operarios. Producti nostri late utuntur in amplis industriarum generibus ut potentia generativa et distributio, productio carbonis, metallurgia, oleum et gas, chemicals, constructiones, portus, nisl, ferriviaria et infrastructura municipalis.
Etiam instrumenta cognata sicut scrinia electrica et clausuras, pixides switchgear in statu nostro producto in alias regiones potestates relatas expandimus sicut connexiones aestus abhorrentes, retinacula electrica et adiunctis instrumentis mechanicis etc. Propositum est aedificare unum stop. electrica apparatu et partium suggestum supplent pro fundamento nostro globali emptoris.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
National Transformers Quality CURATIO Centrum Sinarum
ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Salutis et Salutis Ratio
Patentes nostri:
Nostra productio et qualitas experiendi facultates includunt:
Automatic ffoyle sinuosa
Digital silicone ferro fusa et slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
potentia analyser HAEFLY
HAEFLY analyser harmonicus
Effectus est effectus superior efficientiae altae, inferior dissipatio potentiae et strepitus humilis ad augendum collocationem tuam infrastructuram.
