depictio producti

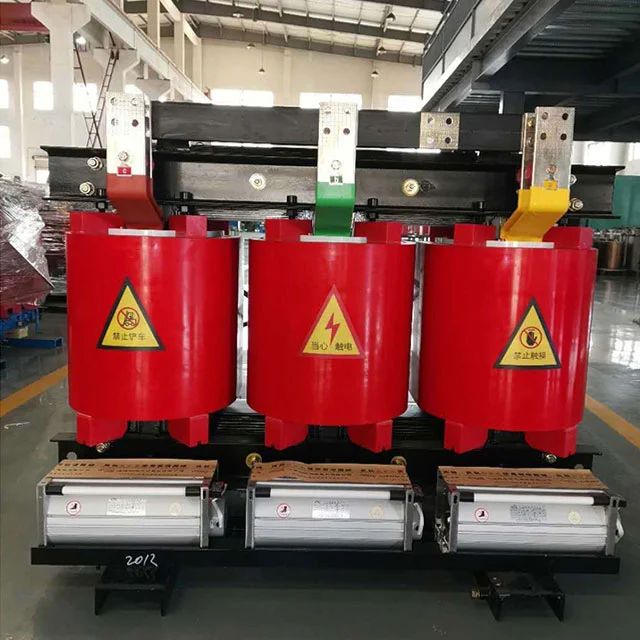

Et SGOB 4000kva arida transformator est robust et agentibus potentia solutio ad postulans applications. Eius consilium oeco-amicum, vestigium compacti, optiones customisabiles, et obsequio cum industria signa, electionem optimam reddunt pro negotiis quae summus perficientur et sustineri electrica solutiones requirunt. Cum eius provectus refrigerationem systems et industria-efficiente consilio, in transferens negotiis certamine et cost-effective ad occursum eorum potestate necessitatibus, ensuring lenis et efficiens.

Quod consilium fictile-typus transformantis eliminat periculum olei scillam, eam facit optionis environmentally amicabilis ac sustinebilis. Hoc consilium etiam efficit ut transformator facile institui et operari possit in variis ambitibus, iis etiam angustiis spatii. Foedum vestigium et firmum fabricandi SGOB 4000kva Transformatoris arida facere optimam electionem faciunt in negotiis quae valido adhuc spatio salutaris solutionis indigent.

Et SGOB 4000kva arida transformator est instructa cum provectus refrigerationem systems quod ponere meliorem operating temperaturis, reducendo sonitus pollutio et calorem generationem. Hoc efficit ut commutator quiete et efficaciter currat, extenuando energiam consumptionem et gratuita opera perficienda. Et industria-efficiente consilio transformator et minimizes potentia damna et maximizes potestate traditio ad onus, longius reducing industria laoreet et ipsum vestigia.

Modulationis consilium transformatoris permittit facilem accessum et sustentationem, tempus minuendi et spatium transformantis extendendi. Etiam optiones customizabiles praebet varias applicationes aptare, negotia permittens sartori commutatori ad suas singulares necessitates. Haec flexibilitas efficit SGOB 4000kva Transformer arida electionem optimam in negotiis quae solutionem potentiae versatilem et aptabilem requirunt.

In addition to its powerful performance and customizable options, the SGOB 4000kva Dry Transformer meets all relevant industry standards and regulations. This ensures that the transformer is safe and compliant in all applications, providing businesses with peace of mind and reducing the risk of potential safety hazards.

4000kva Dry Transformer

Product Features

Resina epoxy jacta 4000kva arida Transformer producta a Shanghai Transformer Industrial Co., Ltd. evolvitur et designatur in cooperatione cum Instituti Transformer Shenyang, introducendo technologias externas. Fiducia producti index in gradum internationalem pervenit.

SGOB 4000kva Transformator arida tuta est, retardat flammae et probatio ignis, pollutionis liberae, et in centro oneris directe institui potest. Liberum sustentationem est, facile ad institutionem, humilis sumptus operans comprehensivos, humilis detrimentum, bonum humoris probatio effectus, normaliter ad C% humiditatem operari potest, et in operatione sine pre- siccitate post shutdown collocari potest. Habet missionem partialem humilem, strepitum humilem, calorem dissipationis validum functionis, et ad 150% onus aestimatum operari potest sub condiciones refrigerationis aeris coactae.

SGOB 4000kva Transformator arida nunc late in aedificiis altis ortus, centris mercatoriis, aliquet nisl, stationibus, navalibus, subviis, officinarum, stationum subterraneis distributio, oleum littoris exercendorum suggestorum, herbarum potentiarum et aliorum locorum asperis ambitibus et conditionibus utentibus.

4000kva Dry Transformer

Pelagus materiae et features

Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.

nucleus ferreus transformatoris factus est ex 30EH120 seriei summae permeabilitatis frigoris pii schedae ferreae revolutae cum ordinatione frumenti ordinate ab Nippon Ferro, Iaponia, 45° articulis plenis coneris et quattuor gradus gradatim positis. Superficies nuclei ferrei signatus cum resina insulating pingit, ne humorem et aeruginem intercludat, et duae fibulae et fasteners anti-corrosionem stratis tutelae habent. Totus nucleus ferrei iugum ferreum non acervum et ferreum trahere structuram bracteae, quae nullum onus detrimentum efficaciter minuit, nullo onere currenti et nucleo ferreo sonum facit.

Pro humili intentione et gyro venae altitudinis, brevis circuitus vis magna est cum brevis occursus occursus, et numerus humilium intentionum se convertens parvus est. Quo maior humilitas voltage vena est, eo magis problema ampere-vicum instabilis eminentior erit cum genus flexae filum adhibitum est. Calor dissipationis quaestio etiam consideranda est. Hoc tempore, usus claua curvi pro humili intentione melius praedictas difficultates solvere potest. Imprimis, ffoyle producta non habent vices axiales et angulos flexos axiales spirales. Ampere vices altae et infimae intentionis ambages librantur, et axialis transformantis accentus parvus est quando brevis occursus occursus est. Secundo, propter tenues velit, multi-circulum aeris ductus libuerit in processu constitui, et calor dissipationis problema melius solvitur. Conglutinatio interna gyri xenon tutelam applicans in machinam globorum plene automaticam fovet, quae altam praecisionem, humili glutino resistentiam habet, nec processus glutino externo. Nulla insula DMD adhibetur inter strata curvis, extremaque signata resina curvis curata.

Crux-fluxus summo-flante refrigerationem ventilabrum adoptat, quae proprietates habet strepitus humilis, pressus ventorum altus, species pulchra, etc., et auget facultatem transformantis cultro. Temperatus imperium prudentem temperatum moderatorem adhibet ad meliorem salutem ac fidem transformantis operationis.

4000kva Dry Transformer

Product Description

Epoxy resinae insulatae genus siccum transformator valde tutus est. Protinus in centrum oneris collocari potest. Bene operatur in ambitu humiditatis 100% sine praesiccatione. Vulgo usus est in constructionibus campi, centrum mercatorum, aeriportuum, stationis, portus, subway, officinas, distributio stationis sub terra, oleum suboles diam diam, potentia planta etc.

Product Features

ignis repugnans

resistentia umor

Securus sustentationem et institutionem

Cursor bene in aspera environment conditionibus

● Non-polluting product

Minimum damnum in comprehensive operandi

Dry Transformer

PARAMETERS

EXEMPLUM	NO PONDUS PRAEIUDICATUM (W)	PONDUS PRAEIUDICATUM (120%)	IMPENDENTIA (%)	NOLOAD current (%)	SONITUS LIBELLA (Lpa) dB*	PONDUS (KG)
SC(B)10-30/10	205	750	4	2.3	57	290
SC(B)10-50/10	285	1060		2.2	57	360
SC(B)10-80/10	380	1460		1.7	59	590
SC(B)10-100/10	410	1670		1.7	59	640
SC(B)10-125/10	470	1960		1.5	60	670
SC(B)10-160/10	550	2250		1.5	60	870
SC(B)10-200/10	650	2680		1.3	61	1040
SC(B)10-250/10	740	2920		1.3	61	1220
SC(B)10-315/10	880	3670		1.1	63	1470
SC(B)10-400/10	1000	4220		1.1	63	1760
SC(B)10-500/10	1180	5170		1.1	64	2050
SC(B)10-630/10	1300	6310	6	0.9	65	2360
SC(B)10-800/10	1540	7360		0.9	65	2730
SC(B)10-1000/10	1750	8610		0.9	65	3270
SC(B)10-1250/10	2030	10260		0.9	67	3840
SC(B)10-1600/10	2700	12400		0.9	68	4920
SC(B)10-2000/10	3000	15300		0.7	70	5780
SC(B)10-250/10	3500	18180		0.7	71	6600
SC(B)10-3150/10	4000	18800		0.5	71	7800
SC(B)10-4000/10	4700	22000		0.5	76	10000

EXEMPLUM	DIMENSIONE(MM)
EXEMPLUM	a	b	c	d	e	f	g	h	K₁	K₂
SC(Z)(B) 10-30/10	1120	850	1100	400	750	640	290	260	270	135
SC(Z)(B) 10-50/10	1170	850	1160	400	810	700	310	270	290	145
SC(Z)(B)10-80/10	1210	900	1240	450	890	760	320	280	290	145
SC(Z)(B)10-100/10	1240	900	1280	450	940	880	320	275	295	142.5
SC(Z)(B)10-125/10	1270	950	1330	550	980	920	325	280	310	155
SC(Z)(B)10-160/10	1310	1100	1360	550	1010	960	305	260	315	157.5
SC(Z)(B)10-200/10	1350	1140	1400	660	1050	980	310	265	340	170
SC(Z)(B)10-250/10	1420	1210	1430	660	1075	1010	300	255	355	177.5
SC(Z)(B)10-315/10	1460	1250	1460	660	1100	1050	305	260	365	182.5
SC(Z)(B)10-400/10	1520	1280	1520	660	1165	1090	315	270	375	187.5
SC(Z)(B)10-500/10	1530	1320	1580	660	1205	1150	320	275	385	182.5
SC(Z)(B)10-630/10	1670	1350	1630	660	1280	1200	325	280	430	215
SC(Z)(B)10-800/10	1680	1350	1650	820	1300	1220	340	295	445	222.5
SC(Z)(B)10-1000/10	1770	1420	1750	820	1390	1310	345	300	465	232.5
SC(Z)(B)10-1250/10	1880	1530	1790	820	1430	1350	355	310	485	242.5
SC(Z)(B)10-1600/10	1960	1530	1860	1070	1520	1420	375	330	510	255
SC(Z)(B)10-2000/10	2000	1620	1960	1070	1600	1500	395	350	510	255
SC(Z)(B)10-250/10	2100	1680	2040	1070	1680	1560	425	380	550	275
SC(Z)(B)10-3150/10	2240	1750	2150	1070	1800	1660	460	410	580	290
SC(Z)(B) 10-4000/10	2370	1840	2310	1070	1960	1800	500	450	630	315

EXEMPLUM	CAPACITAS (KVA)	TANDEM (MM)	LATITUDO (MM)	ALTITUDO (MM)	LONGITUDINALIS (MM)	HORIZONTAL (MM)	PONDUS (KG)
SC(Z)(B) 10-30/10	30	770	500	750	400	450	285
SC(Z)(B) 10-50/10	50	820	500	810	400	450	330
SC(Z)(B)10-80/10	80	860	550	890	450	500	465
SC(Z)(B)10-100/10	100	890	650	940	450	600	530
SC(Z)(B)10-125/10	125	920	650	980	550	600	640
SC(Z)(B)10-160/10	160	960	800	1010	550	750	760
SC(Z)(B)10-200/10	200	1000	800	1050	660	750	905
SC(Z)(B)10-250/10	250	1070	900	1075	660	850	1085
SC(Z)(B)10-315/10	315	1110	900	1100	660	850	1175
SC(Z)(B)10-400/10	400	1170	900	1165	660	850	1460
SC(Z)(B) 10-500/10	500	1180	970	1205	660	920	1670
SC(Z)(B) 10-630/10	630	1320	1000	1280	660	950	1890
SC(Z)(B)10-800/10	800	1325	1000	1300	820	950	2320
SC(Z)(B)10-1000/10	1000	1420	1180	1390	820	950	2800
SC(Z)(B)10-1250/10	1250	1530	1320	1430	820	1270	3255
SC(Z)(B)10-1600/10	1600	1610	1320	1520	1070	1270	4115
SC(Z)(B) 10-2000/10	2000	1650	1500	1600	1070	1450	4690
SC(Z)(B)10-250/10	2500	1750	1550	1680	1070	1500	5620
SC(Z)(B) 10-3150/10	3150	1890	1550	1800	1070	1500	6850
SC(Z)(B) 10-4000/10	4000	2020	1630	1960	1070	1580	8110

Dry Transformer

SODALICIUM PROFILE

Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:

Oleum transformers immersum

● 35KV transformers oleum immersum

Expoxy resinae velit arida-genus virtutis transformers

Amorphoum mixturae distributionis transformers

Photovoltaic transformers

Ventus potentia transformers

Box-style substation transformers

company company

Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.

company

Etiam instrumenta cognata sicut scrinia electrica et clausuras, pixides switchgear in statu nostro producto in alias regiones potestates relatas expandimus sicut connexiones aestus abhorrentes, retinacula electrica et adiunctis instrumentis mechanicis etc. Propositum est aedificare unum stop. electrica apparatu et partium suggestum supplent pro fundamento nostro globali emptoris.

company company

Qualitatem nostram strictam ratiocinari confidimus ut summa productorum qualitas tradat. Nostri 200 operarii, 46 fabrum experientia sunt. Nostra ratio qualitatis includit industriam:

National Transformers Quality CURATIO Centrum Sinarum

● ISO-9001:2008 Quality Management System

ISO-14001:2004 Environmental Management System

● OHSMS18000 Salutis et Salutis Ratio

certificate
