Vestigium pacti transformatoris et constructionis durabilis efficit specimen institutionis in ambitibus spatiis constrictis. Eius constructio robusta efficit diuturnum firmitatem et inconsutilem operationem, etiam in petendis uncinis industrialibus. SGOB 500kva Transformer arida machinatus est ad onera substantialia sustinenda, eamque perfectam aptam facit ad applicationes ubi summae potentiae postulata constant et critica sunt.
SGOB 500kva Transformer arida est summus effectus electrica machinae formandae ut occurreret exigentiis accuratissimis recentiorum applicationum industrialium, commercialium, et institutionalium. Cum robusta potentia rating de 500 kilovolt-amperes (kva), hic commutator testamenta stat ad machinationem et innovationem provectam.
Cum industria efficientiae in mente disposuerat, SGOB 500kva Transformer arida utitur materia civitatis-of-artis-typus insulationis. Haec pericula eliminat cum libero oleo coniungitur, minuit requisita sustentationis et sustinendae environmental augendae. Eius environmentally- amicae consilium adsimilat cum global nisus ad solutiones energiae mundiores promovendas et emissiones carbonis minuendas.
Vestigium pacti transformatoris et constructionis durabilis efficit specimen institutionis in ambitibus spatiis constrictis. Eius constructio robusta efficit diuturnum firmitatem et inconsutilem operationem, etiam in petendis uncinis industrialibus. SGOB 500kva Transformer arida machinatus est ad onera substantialia sustinenda, eamque perfectam aptam facit ad applicationes ubi summae potentiae postulata constant et critica sunt.
Praeter vires suas robustas facultates tractandi, transformator industriae efficientiam infigendam iactat. Damna energiae minimizat, traditio potentiae maximae ad onus et deminutio gratuita perficienda. Hoc facit optimam electionem in negotiis quaerendis ad industriam suam consummationem optimize ac minuendum vestigium carbonis.
SGOB 500kva Transformer arida est certa, efficax, et environmentally amica potentiae solutio. Eius consilium compactum, constructionem robustam, et materias insulationes provectas electionem meliorem faciunt pro amplis applicationibus, inconsutilem virtutem distribuendi et operandi praestantiam procurandi.
Product Features

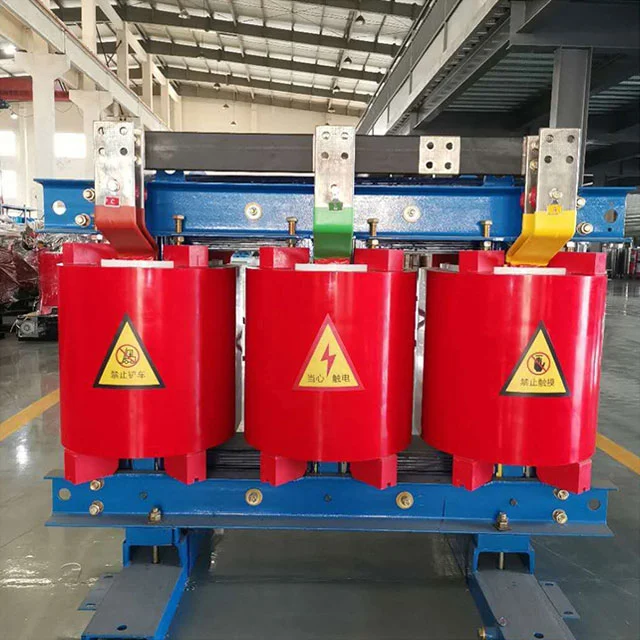

The epoxy resin cast 500kva Dry Transformer produced by Shanghai Industrial Transformer Co., Ltd. is developed and designed in cooperation with Shenyang Transformer Research Institute by introducing advanced foreign technology. The product reliability index has reached the international advanced level.
SGOB 500kva Transformator arida tuta est, retardat flammae et probatio ignis, pollutionis liberae, et in centro oneris directe institui potest. Liberum sustentationem est, facile ad institutionem, humilis sumptus operans comprehensivos, humilis detrimentum, bonum humoris probatio effectus, normaliter ad C% humiditatem operari potest, et in operatione sine pre- siccitate post shutdown collocari potest. Habet missionem partialem humilem, strepitum humilem, calorem dissipationis validum functionis, et ad 150% onus aestimatum operari potest sub condiciones refrigerationis aeris coactae.
SGOB 500kva Transformator arida nunc late in aedificiis altis ortus, centris mercatoriis, aliquet nisl, stationibus, navalibus, subviis, officinarum, stationum subterraneis distributio, olio maritimo exercendis suggestis, viribus herbarum et aliis locis asperis ambitibus et conditionibus utentibus.
Pelagus materiae et features
Coil utitur F-classis filum aeneum insulatum ut conductor et fibra vitrea et resina epoxy materia composita ut velit. Expansio eius coefficiens prope aes conductor est et bonam repugnantiam habet, caloris mutatio resistentia et resistentia resiliunt. Omnes partes vitreae fibrae et epoxy resinae per se exstinguendae sunt et non ardebunt. Eodem tempore, summus volages gyrus cum epoxy resina sub 1mbar vacuo statu conjicitur, et intra spiram bullae nullae sunt, ut missio partialis spirae parva sit. Eodem tempore commutatoris iactura efficaciter reducitur.
The iron core of the transformer is made of 30EH120 series of high-permeability cold-rolled silicon steel sheets with orderly grain orientation imported from Nippon Steel, Japan, with 45° full-bevel joints and four-level step-by-step stacking. The surface of the iron core is sealed with insulating resin paint to prevent moisture and rust, and the two clamps and fasteners have anti-corrosion protective layers. The entire iron core adopts a non-stacked iron yoke and steel pull plate structure, which effectively reduces no-load loss, no-load current and iron core noise.
Pro humili intentione et gyro venae altitudinis, brevis circuitus vis magna est cum brevis occursus occursus, et numerus humilium intentionum se convertens parvus est. Quo maior humilitas voltage vena est, eo magis problema ampere-vicum instabilis eminentior erit cum genus flexae filum adhibitum est. Calor dissipationis quaestio etiam consideranda est. Hoc tempore, usus claua curvi pro humili intentione melius praedictas difficultates solvere potest. Imprimis, ffoyle producta non habent vices axiales et angulos flexos axiales spirales. Ampere vices altae et infimae intentionis ambages librantur, et axialis transformantis accentus parvus est quando brevis occursus occursus est. Secundo, propter tenues velit, multi-circulum aeris ductus libuerit in processu constitui, et calor dissipationis problema melius solvitur. Conglutinatio interna gyri xenon tutelam applicans in machinam globorum plene automaticam fovet, quae altam praecisionem, humili glutino resistentiam habet, nec processus glutino externo. Nulla insula DMD adhibetur inter strata curvis, extremaque signata resina curvis curata.
Crux-fluxus summo-flante refrigerationem ventilabrum adoptat, quae proprietates habet strepitus humilis, pressus ventorum altus, species pulchra, etc., et auget facultatem transformantis cultro. Temperatus imperium prudentem temperatum moderatorem adhibet ad meliorem salutem ac fidem transformantis operationis.
Product Description
Epoxy resin insulated dry type transformer is very safe product. It can be directly installed in the load center. It works well in the 100% humidity environment without pre-drying. It has been widely used in the constructions field, commercial center, airport, station, port, subway, factory, underground power distribution station, offshore oil drilling platform, power plant etc.
Product Features
ignis repugnans
● Moisture resistance
● Easy maintenance and installation
● Running well during rough environment conditions
Non polluere productum
Minimum damnum in comprehensive operandi
PARAMETERS
| EXEMPLUM | NO PONDUS PRAEIUDICATUM (W) |
PONDUS PRAEIUDICATUM (120%) |
IMPENDENCE (%) |
NOLOAD current (%) |
SONITUS LIBELLA (Lpa) dB* |
PONDUS (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-250/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| EXEMPLUM | DIMENSIONE(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-250/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| EXEMPLUM | CAPACITAS (KVA) | TANDEM (MM) |
LATITUDO (MM) |
HEIGHT (MM) |
LONGITUDINALIS (MM) | HORIZONTAL (MM) | PONDUS (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-250/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
SODALICIUM PROFILE
Shanghai Industry Transformers Co, Ltd (SGOB) est plena range elit of electrica apparatu distributio. Producta nostra includit:
Oleum transformers immersum
● 35KV transformers oleum immersum
Expoxy resinae velit arida-genus virtutis transformers
Amorphoum mixturae distributionis transformers
Photovoltaic transformers
Ventus potentia transformers
Box-style substation transformers
Societas nostra anno 2007 condita est et hodie 40,000sqm officinam habet et plus quam 200 conductos operarios. Producti nostri late utuntur in amplis industriarum generibus ut potentia generativa et distributio, productio carbonis, metallurgia, oleum et gas, chemicals, constructiones, portus, nisl, ferriviaria et infrastructura municipalis.
Etiam instrumenta cognata sicut scrinia electrica et clausuras, pixides switchgear in statu nostro producto in alias regiones potestates relatas expandimus sicut connexiones aestus abhorrentes, retinacula electrica et adiunctis instrumentis mechanicis etc. Propositum est aedificare unum stop. electrica apparatu et partium suggestum supplent pro fundamento nostro globali emptoris.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
National Transformers Quality CURATIO Centrum Sinarum
ISO-9001:2008 Quality Management System
ISO-14001:2004 Environmental Management System
● OHSMS18000 Salutis et Salutis Ratio
Patentes nostri:
Nostra productio et qualitas experiendi facultates includunt:
Automatic ffoyle sinuosa
Digital silicone ferro fusa et slitting
Plene vacuum clibano exsiccato et illitus linea
HAEFLY probatorem partialem missionem
potentia analyser HAEFLY
HAEFLY analyser harmonicus
Effectus est effectus superior efficientiae altae, inferior dissipatio potentiae et strepitus humilis ad augendum collocationem tuam infrastructuram.
