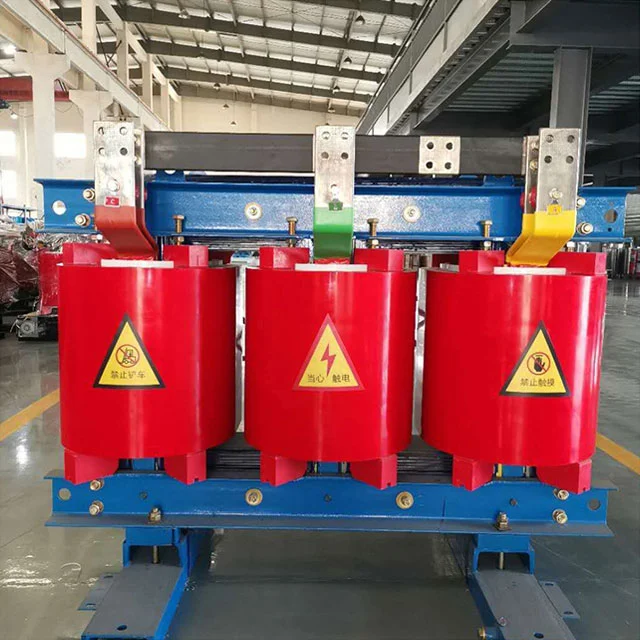

Ut professio fabrica, sgob praebet summus qualitas DCXXX KVA tribus Phase arida genus Transformer, genus solidum, insulatas potentia conversionem apparatu. Voltage transmutatio effectum per epoxy resinae, encapsulated tabellarios eliminating periculo liquidae lacus et disposito potentia copia applications requiring princeps salutem signa.
Hoc DCXXX KVA tres-Phase siccum-genus TRANSFORMER ex SGOB features C% aeris, 5000v altum voltage et 50Hz / 60Hz frequency. Hoc obsequitur IEC signa ad usum in potestate plantae, substationum, etc Rating voltages includit 6kv, 6.3kv, 10kv, 10.5kv, et 11kv. Customization pro propria requisitis is available. Placere contact us for more details.
Product Features:
I. Usus aeris Conductors cum fiberglass composita velit, vacuo-cast in epoxy resinae ad bulla libero, signatum structuram.
II. Core utitur frumenti oriented Silicon ferro laminas cum egressus-gremio consilio ad redigendum hysteresis damnum.
III. Et humilis-voltage latus utitur ffoyle curvis structuram cum automatic argon Argon Welding ad uniformis current distribution.
IV. An intelligentes temperatus imperium ratio cum axial fan moderatur refrigerationem efficientiam.
V. Casing Fines cooperiens ad torquent Casting Fii ad convectionem, et corrosio repugnans coating protegit contra sal imbre.
Productio processus:
Post curvis, in aeris filum est pre-impraegned cum insulating varnish, tunc vacuo-cast in epoxy resinae curationis. Core est laser-Conscidisti et reclinant, cum hydraulicis clausis applicando assidue pressura. Conventus Core et coils coxit vinculo components. Partiales missionem scanning et harmonica analysis fieri ante sit amet, cum notitia uploaded ad nubes in vestigia.
Key commoda super oleum, immersa Transformers:
I. oleum-baptizatum Transformers habere periculum olei leakage ex sigillum defectum, potentia causing solo pollutio et ignis pericula; DCXXX KVA tres-tempus siccum-genus TRANSFORMER ELIMImable MEDIA, et resinae sui exstinguit in casu de arcu culpa, ne secundarium damnum. Oleum-baptizatum Transformers generate flammabiles vapores sub ONERO condiciones, requiring Gas praesidio systems. Arida-genus Transformers directe Monitor ad temperatus de calidissimus punctum per embedded sensoriis, melior celeritas diluculo monitionem et responsionem.
II. In oleum-baptizatum Transformers, mutat in oleum Viscositas ad low temperaturis afficit calor dissipationem efficientiam et altum temperaturis accelerate velit senescit; In scelerisque expansion coefficiente in epoxy resinae in sicco-genus Transformers par quod a aeris Conductors, maintaining mechanica stabilitatem sub extrema temperatus varietates. Oleum-baptizari Transformers requirere periodica oleum qualis et humorem contentus temptationis; Et plene signatum structuram ex arida-genus Transformers concedit operationem in C% humiditas ferendum, eliminating opus additional tutela seplosures in marine environments cum sal imbre corrosio.
III. Oleum-baptizatum transformer sustentationem requirit specialized oleum filtration apparatu et vastum oleum arbitrio costs; accidentalis eventum in site tersus sumptibus; Solum-genus Transformers tantum eget compressi aeris Purgato ad superficiem pulveris cumulus, cum non consumptius replacement costs. PERFECTURA olei-oleum-baptizari vistriones; Arida-type materiae potest esse mechanice oppressi, sorted et recycled, significantly augendae RELICTUM valorem. Oleum-baptizari transformer reparationibus eget oleum exhauriebat ratio; Arida-genus Transformers firmamentum modularis corrigi replacement, reducendo downtime.
Sustentationem notas
I. Non utor a summo-pressura aeris gun directe in calor descendat per operationem de DCXXX KVA tres-Phase arida-type Transformer ad vitare Micro-rimas in resina.
II. Pulvis ex calor dissipationem canales cum mollis penicillo, si exaggeratus plus quam tres menses.
III. Reprehendo pro sale crystallum formationem in terminalibus in maritimis locis ante ETESIA tempore.
IV. Turn interponere interpositus perit post subito brevi circuitu.
V. Sigillum et Store in arida environment durante diu-term repono; Ponere constant temperatus et humiditas pro XLVIII horis ante restarting.
Est overload facultatem inferior quam olei-baptizati Transformers?
Et resinae, encapsulated et in altiorem scelerisque facultatem et sub coactus aer refrigerationem, continua ONERO est actu longior quam olei-immersa Transformers; Velocitatem receptam post subito brevi circuitu etiam citius.
Productum parametri
| Exemplar | Non onus damnum (W) |
Onus damnum (CXX%) |
Impendentia (%) |
Noload current (%) |
Sonitus campester (LPA) db |
Pondus (KG) |
| SC (B) 10-30 / X | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC (B) 10-50 / X | 285 | 1060 | 2.2 | 57 | 360 | |
| SC (B) 10-80 / X | 380 | 1460 | 1.7 | 59 | 590 | |
| SC (B) 10-100 / X | 410 | 1670 | 1.7 | 59 | 640 | |
| SC (B) 10-125 / X | 470 | 1960 | 1.5 | 60 | 670 | |
| SC (B) 10-160 / X | 550 | 2250 | 1.5 | 60 | 870 | |
| SC (B) 10-200 / X | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC (B) 10-250 / X | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC (B) 10-315 / X | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC (B) 10-400 / X | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC (B) 10-500 / X | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC (B) 10-630 / X | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC (B) 10-800 / X | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC (B) 10-1000 / X | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC (B) 10-1250 / X | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC (B) 10-1600 / X | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC (B) 10-2000 / X | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC (B) 10-2500 / X | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC (B) 10-3150 / X | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC (B) 10-4000 / X | 4700 | 22000 | 0.5 | 76 | 10000 |
| Exemplar | Dimensionem (mm) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC (Z) (b) 10-30 / X | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC (Z) (b) 10-50 / X | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC (Z) (B) 10-80 / X | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC (Z) (B) 10-100 / X | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC (Z) (b) 10-125 / X | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC (Z) (b) 10-160 / X | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC (Z) (b) 10-200 / X | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC (Z) (B) 10-250 / X | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC (Z) (B) 10-315 / X | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC (Z) (B) 10-400 / X | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC (Z) (b) 10-500 / X | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC (Z) (B) 10-630 / X | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC (Z) (B) 10-800 / X | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC (Z) (b) 10-1000 / X | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC (Z) (b) 10-1250 / X | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC (Z) (B) 10-1600 / X | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC (Z) (b) 10-2000 / X | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC (Z) (B) 10-2500 / X | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC (Z) (b) 10-3150 / X | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC (Z) (B) 10-4000 / X | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| Exemplar | Capacity (KVA) | Longitudo (M) |
Width (mm) | Altitudo (M) |
Longitudinalis (mm) | Horizontalis (mm) | Pondus (kg) |
| SC (Z) (b) 10-30 / X | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC (Z) (b) 10-50 / X | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC (Z) (B) 10-80 / X | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC (Z) (B) 10-100 / X | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC (Z) (b) 10-125 / X | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC (Z) (b) 10-160 / X | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC (Z) (b) 10-200 / X | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC (Z) (B) 10-250 / X | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC (Z) (B) 10-315 / X | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC (Z) (B) 10-400 / X | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC (Z) (b) 10-500 / X | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC (Z) (B) 10-630 / X | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC (Z) (B) 10-800 / X | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC (Z) (b) 10-1000 / X | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC (Z) (b) 10-1250 / X | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC (Z) (B) 10-1600 / X | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC (Z) (b) 10-2000 / X | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC (Z) (B) 10-2500 / X | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC (Z) (b) 10-3150 / X | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC (Z) (B) 10-4000 / X | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
